Boilers remain essential equipment aboard merchant ships, even in modern vessels powered by diesel engines or gas turbines. They provide steam or heat for multiple shipboard uses—fuel heating, cargo heating, inert gas generation, hotel services, fresh water generation, and more. Efficient and reliable boiler operation is critical for safety, regulatory compliance, operational cost, and environmental performance. In this article, we’ll examine the types of boilers used on merchant ships, their construction principles, typical applications, and the technological advances enhancing efficiency and sustainability.
Role of Boilers on Merchant Ships
Boilers on ships perform several critical functions:
-
Auxiliary heating: heavy fuel oil (HFO), lubricating oil, cargo tanks, accommodation, galley, and fresh water evaporators.
-
Inert Gas Generation (IGG): on tankers, boiler exhaust or dedicated steam helps generate inert gas to prevent explosions in cargo tanks.
-
Operational flexibility: boilers supply steam when the main engines are idle, such as during port stays or maintenance periods.
Given these roles, marine boilers must operate reliably across a wide range of loads and environmental conditions.
Fire-Tube vs. Water-Tube Boilers
Fire-Tube Boilers
Hot combustion gases pass through tubes surrounded by water. Heat transfer through the tube walls generates steam.
-
Advantages: simple design, easy to maintain, good for lower pressures and smaller capacities.
-
Disadvantages: bulkier and slower response at higher pressures.
-
Water-Tube Boilers
Water circulates through tubes heated externally by hot gases.-
Advantages: capable of higher pressures, higher steam output, and faster start-up.
-
Disadvantages: more complex, requires high water quality, and careful maintenance.
Modern merchant ships typically use water-tube boilers for high-pressure applications and fire-tube boilers as auxiliary or backup units.
-
Based on Heat Source or Fuel Type

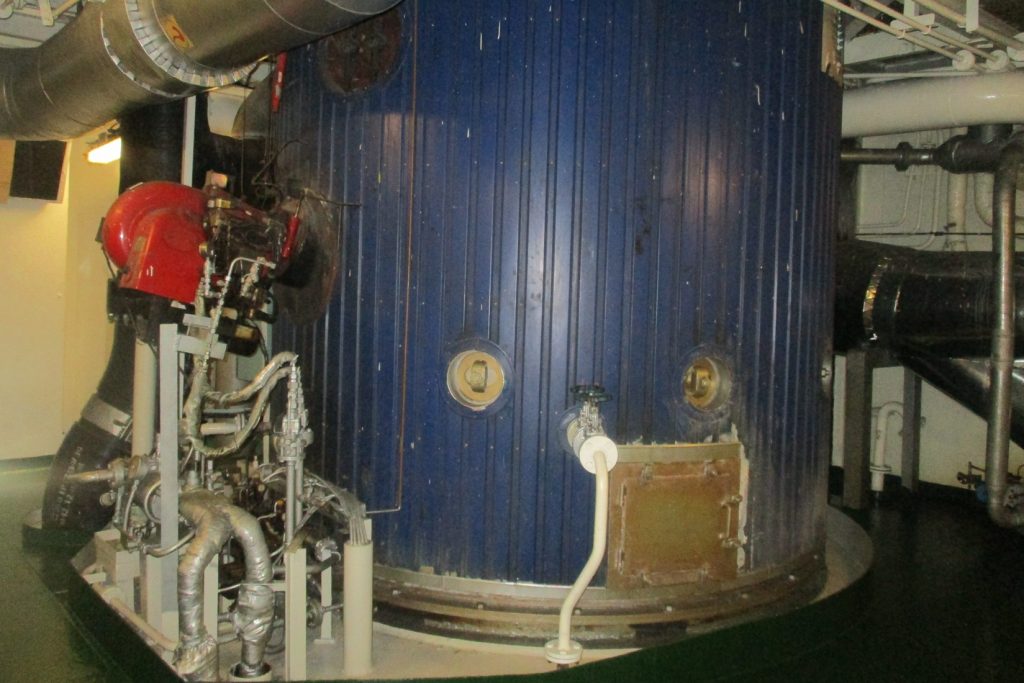

1. Oil-Fired Boilers

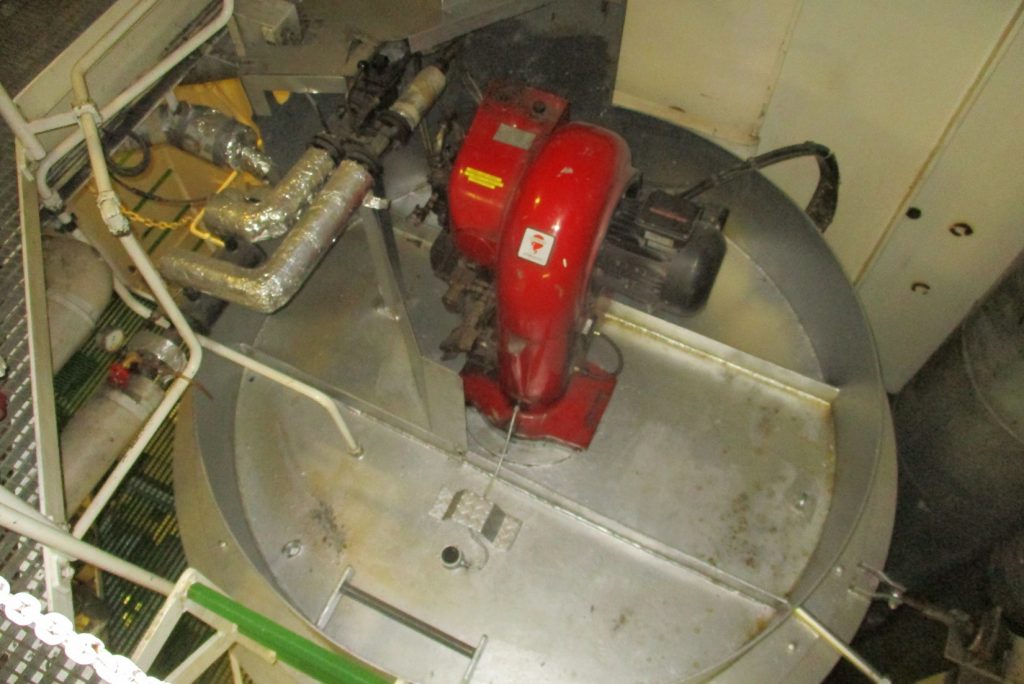

Oil-fired boilers use dedicated burners to heat water into steam. They are essential when waste heat is unavailable or insufficient, such as during port operations or at low engine loads.
Modern designs feature automatic combustion control, low-NOₓ burners, and multi-fuel compatibility to burn marine gas oil (MGO), LNG, or biofuels efficiently.
2. Exhaust Gas Boilers (Waste Heat Boilers)
These boilers recover heat from the main or auxiliary engine exhaust to generate steam without additional fuel consumption. They are among the most efficient systems on board, reducing both fuel use and greenhouse gas emissions.
Improvements include optimized tube geometries, corrosion-resistant materials, and automatic bypass dampers to manage exhaust flow under variable load conditions. Well-integrated systems can deliver up to 15% fuel savings and proportional CO₂ reductions.
3. Composite (Combination) Boilers
Composite boilers combine oil-firing and exhaust gas heat recovery in one unit. When the ship’s main engines are running, exhaust gases generate the required steam; when at port or low load, the burner automatically takes over.
Automatic switching, flame monitoring, and modulating burner control allow seamless operation and stable steam pressure. This flexibility makes composite boilers particularly popular on tankers and container ships.
4. Thermal Oil Boilers
Thermal oil boilers (also known as hot oil or heat transfer fluid boilers) differ from steam boilers in that they heat thermal fluid instead of water. The heated oil circulates through a closed loop to deliver heat to cargo heating systems, fuel heating modules, or accommodation units.
They operate at low pressure but can reach high temperatures (up to 300°C), offering significant safety and maintenance advantages:
-
No water treatment or condensate handling.
-
Lower corrosion and scaling risk.
-
High thermal efficiency and precise temperature control.
These boilers are common on chemical and product tankers, where controlled heating of sensitive cargo is essential.
5. Multi-Fuel or Dual-Fuel Boilers
Driven by IMO decarbonization goals, modern boiler systems can operate on multiple fuel types such as LNG, methanol, or ammonia. These require specialized burners, fuel supply systems, and material compatibility for safe operation.
They offer long-term flexibility, future-proofing vessels for upcoming emission standards and fuel transitions.
Based on Function: Main, Auxiliary, and Steam Generators
-
Main Boilers: provide high-pressure steam for propulsion in steam turbine vessels or LNG carriers.
-
Auxiliary Boilers: supply steam for heating, inert gas, or domestic services.
-
Steam Generators: compact, low-pressure units used for small ships or as auxiliary heat sources.
Modern Technologies and Recent Advances
Marine boiler technology has developed rapidly, driven by stricter emissions regulations, energy efficiency demands, and the rise of alternative fuels.
Waste Heat Recovery Systems
Modern ships employ waste heat recovery (WHR) to harness exhaust energy from main or auxiliary engines. The recovered heat can produce steam for shipboard services or drive turbo-generators for electrical power.
Technological improvements include:
-
High-efficiency economizers with increased heat exchange area.
-
Corrosion-resistant alloys and anti-fouling coatings.
-
Smart control systems optimizing steam generation based on engine load and ambient conditions.
-
Integration with hybrid power management systems to reduce fuel consumption.
Composite and Dual-Source Boilers
New composite boiler designs allow fully automatic switching between exhaust gas and burner operation. Advanced electronic control systems regulate burner output, flame stability, and steam pressure to maintain optimal efficiency.
Some systems feature flue gas recirculation for ultra-low NOₓ emissions and digital combustion control for precision adjustment under changing conditions.
Materials, Construction, and Compact Design
-
Improved materials: high-temperature steels, stainless alloys, and coatings extend boiler life and resist corrosion.
-
Enhanced tube design: pin-tubes, rifled tubes, and multi-pass layouts improve heat transfer and cleaning access.
-
Compact modular construction: modern boilers are lighter and easier to install, ideal for space-limited engine rooms.
-
Improved vibration resistance: structural supports designed for ship motion and dynamic loads increase reliability.

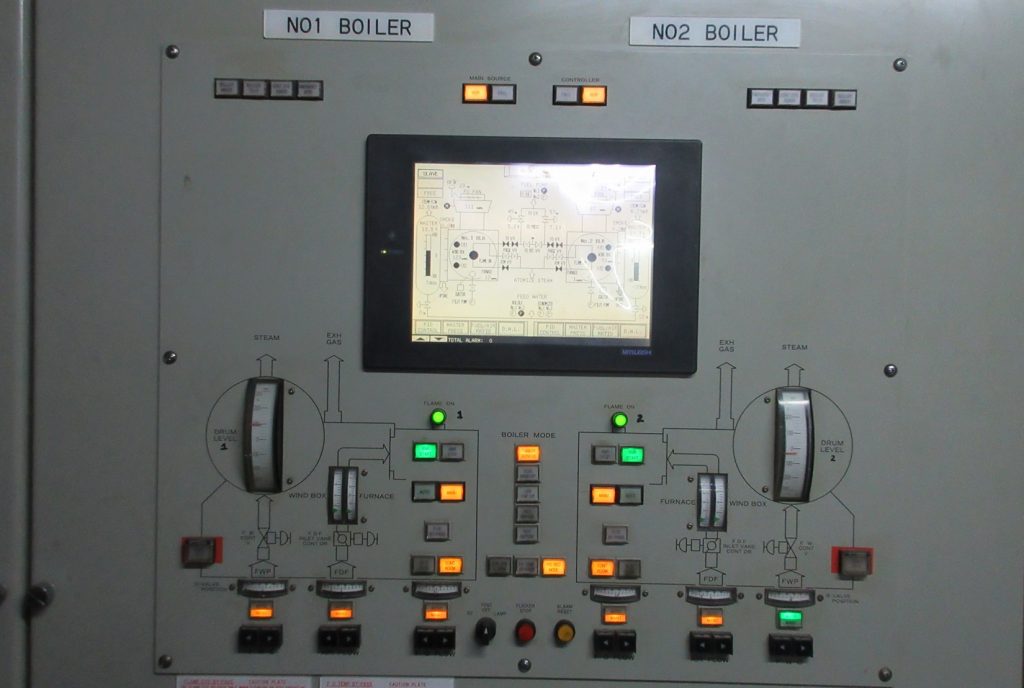

Automation and Monitoring
Automation has revolutionized boiler operation aboard ships:
-
Modulating combustion systems optimize fuel-to-air ratios for efficiency and safety.
-
Integrated sensors continuously monitor temperature, pressure, and exhaust composition.
-
Predictive maintenance using performance analytics detects fouling, scaling, or burner issues before failure.
-
Remote diagnostics enable ship-to-shore monitoring, supporting smaller crews and improved uptime.
Environmental Compliance and Efficiency
Marine boilers contribute directly to a ship’s overall energy efficiency and emissions profile.
Recent innovations target compliance with IMO MARPOL Annex VI, the Energy Efficiency Existing Ship Index (EEXI), and Carbon Intensity Indicator (CII).
Key developments include:
-
Low-NOₓ burners and flue gas recirculation systems.
-
Waste heat recovery integration to reduce CO₂ output.
-
Multi-fuel capability for compatibility with future low-carbon fuels.
-
Advanced insulation and optimized combustion for minimal heat loss.
Digitalized monitoring ensures compliance and performance tracking in real time.
Challenges and Future Directions
Despite technological progress, several challenges remain in marine boiler operation and design:
-
Fuel Transition: Adapting boilers to burn LNG, methanol, or ammonia introduces new combustion and safety challenges.
-
Corrosion and Fouling: Exhaust gas contaminants and soot accumulation continue to impact efficiency; advanced coatings and cleaning systems are in development.
-
Dynamic Load Operation: Boilers must maintain efficiency during rapid load changes, such as maneuvering or slow steaming.
-
Thermal Fluid Maintenance: In thermal oil systems, oxidation and degradation of the oil must be monitored and managed.
-
Integration with Hybrid Energy Systems: Boilers must coordinate with waste heat recovery, batteries, and alternative propulsion sources for optimal energy balance.
-
Digitalization and Predictive Maintenance: Expanding sensor networks and AI-based diagnostics are expected to play a greater role in condition-based maintenance.
